Ultra-high-g

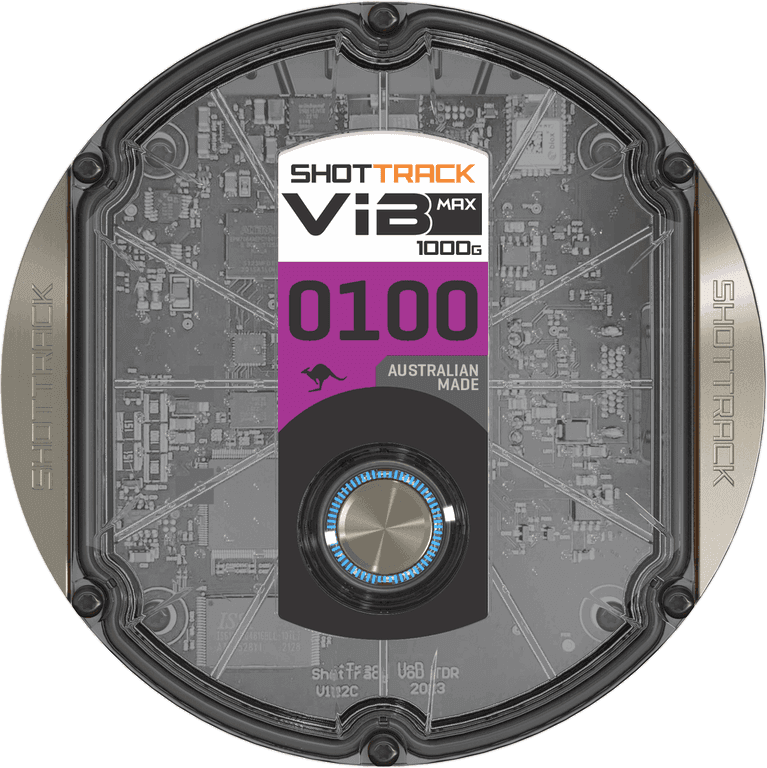

ViB Max
Coming soon. A fully self-contained tri-axial vibration monitor built for extreme near-field work, right where blast vibration is at its most violent. Pit walls, damage studies, structures metres from the shot. Ranges up to 1000 g and sample rates to 64,000 s/s capture the full high-frequency signal without clipping, with GPS PPS-embedded timestamps for precise synchronisation.
- 200g, 500g & 1000g ranges
- Up to 64,000 s/s
- Near-field blast work
- High-shock IP67 enclosure
Request a quote
ViB Max
VIB-MAX
$6,926excl. GST
Need it for a campaign or trial? Monthly hire may suit your programme.
Items are added to your quote cart — review it and check out whenever you're ready.
Specifications
Accelerometer
- Ranges: tri-axial 200, 500 and 1000 g
- Resolution: 24-bit
- Bandwidth: 2 Hz to 15 kHz
- Velocity conversion: band-pass 2 to 500 Hz for near-field damage-criteria analysis
Sampling and memory
- Sample rates: selectable 4, 8, 16, 32 and 64 kHz
- Record duration: To be confirmed
- Onboard memory: To be confirmed
Control and timing
- Control: ShockAI App
- Triggering: 1% to 80% of selected g range, set per axis
- Histogram mode: To be confirmed
- Timing: Onboard GPS with PPS embedded timing, wire-break option underground
Air overpressure
- Microphone: Not fitted
Power
- Battery: Rechargeable 4.7 Ah Li-ion, USB-C fast charging
Physical
- Dimensions: 133 mm diameter, 36 mm height, 440 g
Data upload
- Upload: ShockAI App or ShockAI Web-App
Benefits
- Quick and easy deployment — fully self-contained, no data acquisition units
- Near-field capture without clipping at ultra-high g and sample rates
- Remote wireless control and download
- Accurate time synchronisation via GPS PPS
- Analyse and export data into reports
- Built to survive the toughest site conditions
Mounting options
- Standard Dyno-Bolt mounting

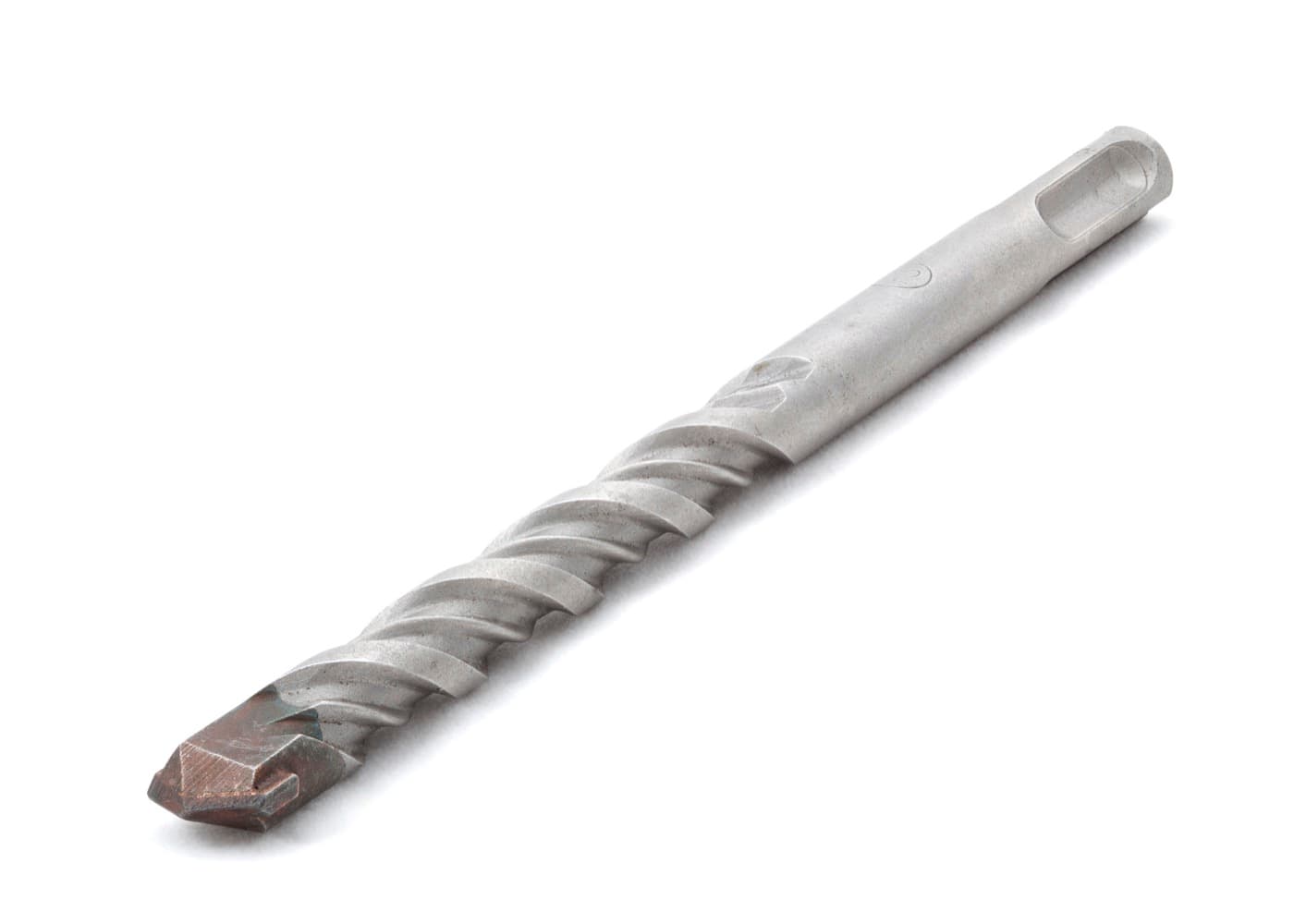

Complete the kit
