Compact vibration sensor

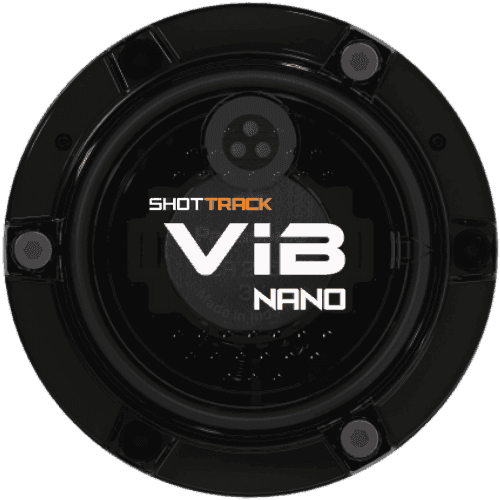

ViB Nano
A cost-effective way to monitor vibration across applications—from blast-induced ground vibration to bridge stability and geophysical surveys. A high-precision tri-axial accelerometer in a 70 mm enclosure, controlled over Bluetooth with immediate results and ShockAI cloud upload.
- Selectable 2, 4 & 8g
- Bluetooth event capture
- Tri-axial accelerometer
- Rugged field packaging
Request a quote
ViB Nano
VIB-NANO
$2,518excl. GST
Need it for a campaign or trial? Monthly hire may suit your programme.
Items are added to your quote cart — review it and check out whenever you're ready.
Specifications
Accelerometer
- Ranges: selectable 2, 4 and 8 g
- Resolution: 20-bit (256,000 LSB/g at 2 g)
- Bandwidth: DC to 500 Hz native acceleration
- Velocity conversion: band-pass 2 to 250 Hz for compliance (PPV) reporting
Sampling and memory
- Sample rates: selectable 1000 and 2000 samples per second
- Record duration: up to 14 s at 1000 s/s, 7 s at 2000 s/s
- Onboard memory: up to 100 events
Control and timing
- Control: ShockAI App
- Triggering: 1% to 80% of selected g range, set per axis
- Histogram mode: Peak X, Y and Z acceleration every 5 minutes
- Timing: Time set from last connected device (phone or computer), accurate to one second
Air overpressure
- Microphone: Not fitted
Power
- Battery: 620 mAh 3 V coin cell
Physical
- Dimensions: 68 mm diameter, 28 mm height, 162 g with battery
Data upload
- Upload: ShockAI App or ShockAI Web-App
Mounting options
- M8 centre thread

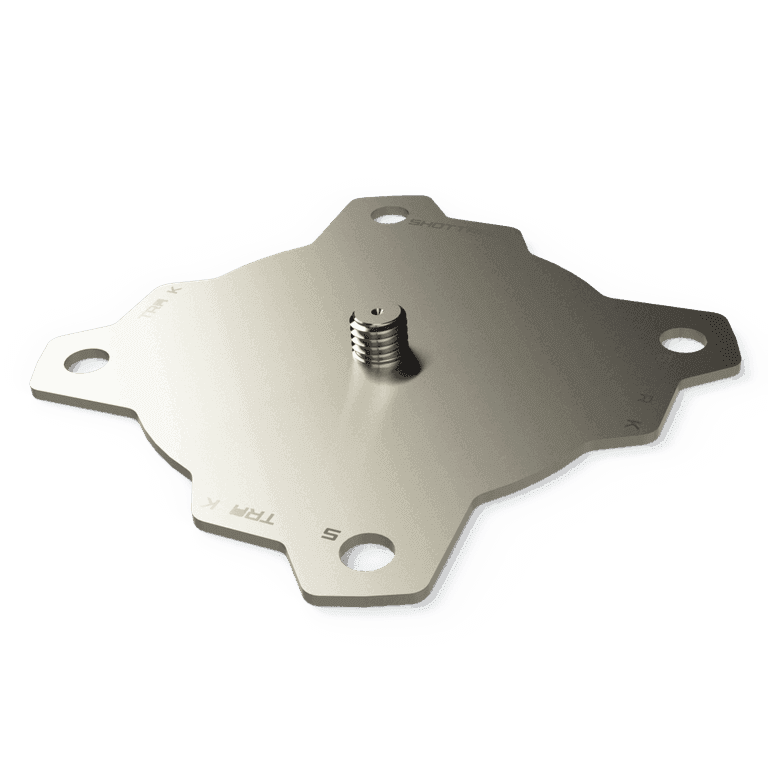

- Mounting plate

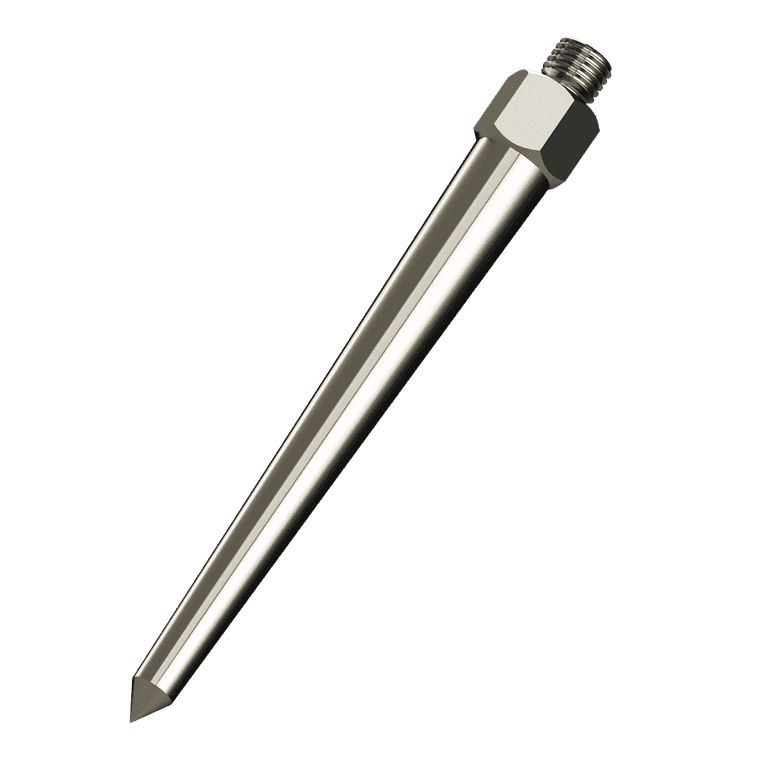

- 100 mm spike
- 50 mm spike
